SPRAY MASTER

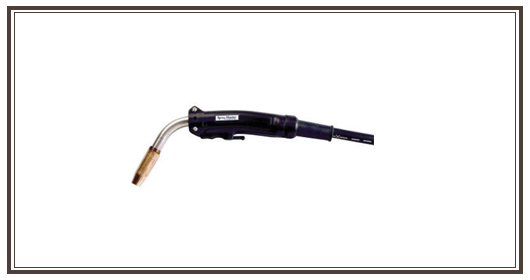

Spray Master® V-Series Air-Cooled MIG Gun – w/ Euro-Kwik Style Rear Connector
The Spray Master MIG Gun receives Velocity™ Medium and Heavy Duty consumables to create a new line of MIG guns, the Spray Master V-Series. Spray Master V-Series maintains the features that made the original Spray Master legendary:
- Compact Ergonomic Handle Design is preferred by many for comfort and maneuverability while reducing operator fatigue.
- Extended Length Trigger allows welders to adjust and reposition their grip for access, comfort and to avoid radiated heat. Adjusting your grip helps avoid repetitive motion, thus reducing fatigue.
- Fully Rotatable Conductor Tube allows welders further options to reconfigure the MIG Gun form factor to solve access issues, improve maneuverability, as well as reducing fatigue and adjusting for comfort.
- Thick-Walled, Three-Layer Conductor Tube is designed for heavy duty cycle applications.
- Maintains the Original Tweco Cablehoz in 250, 350, and 450 Amp versions that provide the required electrical and thermal conductivity along with cable flexibility that is best in class.

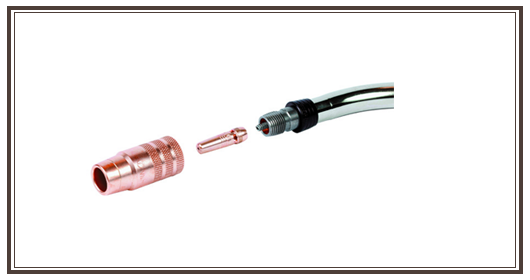

New generation Tweco® Velocity
MIG Welding Consumables
NEW GENERATION TWECO® VELOCITY

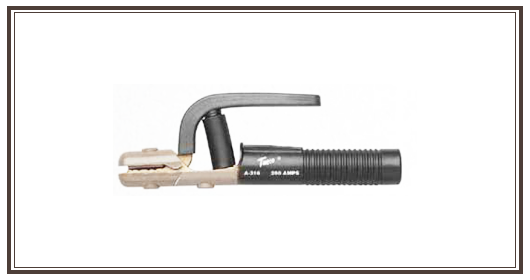

TWECOTONG® ELECTRODE HOLDERS
TWECOTONG® ELECTRODE HOLDERS
- Feature reversible top and bottom insulators.
- Efficient 6-position jaw patterns. Fully insulated.
- Protected springs. Ball-point cable connection.
Part No. | A532 | A-316 | A-732 | A-14 | A-14-HD | A-38-HD |
Amps | 200 | 250 | 300 | 350 | 400 | 500 |
Body Alloy | Copper | Copper | Copper | Copper | Copper | Copper |

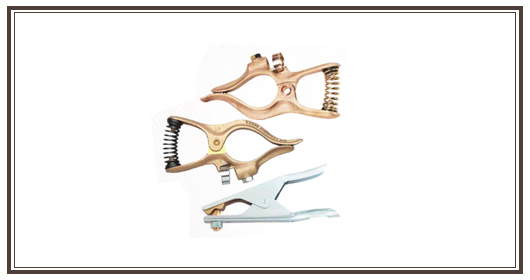

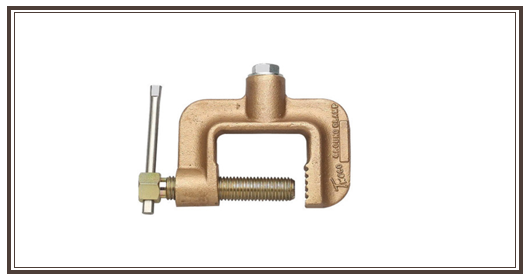

TWECO – COPPER, STEEL & C-TYPE GROUND CLAMPS
Part No. | GC-200 | GC-300 | GC-200 | SGC-300 | SGC-500 |
Amps | 200 | 300 | 500 | 300 | 500 |
TWECO – COPPER, STEEL & C-TYPE GROUND CLAMPS
TWECO – COPPER, STEEL & C-TYPE GROUND CLAMPS
TWECO – COPPER, STEEL & C-TYPE GROUND CLAMPS
Part No. | GC-600-50 | GC-600-DBP | GC-600-TMP |
Amps | 600 | 600 | 600 |

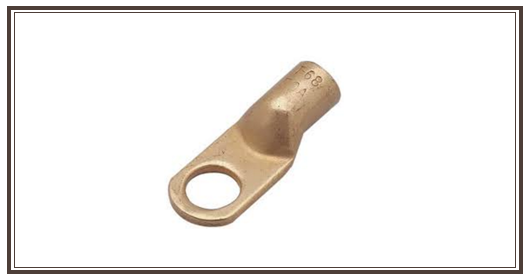

TWECOLUGS
Part No. | Welding Cable Size | AMP Rating |
---|---|---|
T-120 | 1 thru 2/0 | 225 |
T-62 | 6 thru 2 | 150 |
TWECOLUGS
HEAVY DUTY ROTARY GROUND DEVICES & ROTO- WORK GROUNDING CLAMPS
HEAVY DUTY ROTARY GROUND DEVICES & ROTO- WORK GROUNDING CLAMPS
Part No. | RG-140 | RG-230 | RG-240 | RG-440 | RG-640 |
Amps | 400 | 600 | 800 | 1500 | 2000 |
Part No. | WCRG-600 | WCRG-1200 | WCRG-2000 |
Amps | 600 | 1200 | 2000 |

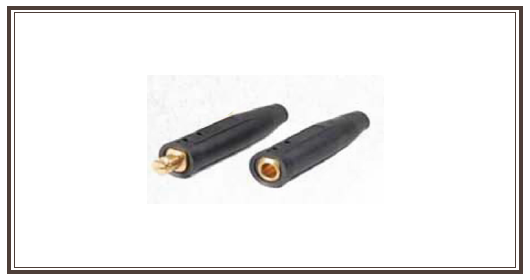

TWECO CABLE CONNECTORS
- MPC connectors are equipped with heat and oil resistant covers,
- Zinc plated cover and ball-point cable screws
Part No. | Description | Type Cable Connection | Cable Capacity |
---|---|---|---|
4-MPC | Complete connection | Double ball-point | 3/0 or 4/0 |
2-MPC | Complete connection | Single ball-point | 1/0, 2/0, 3/0 |
TWECO CABLE CONNECTORS

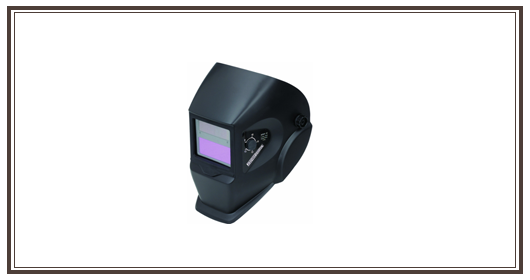

TWECO AUTO-DARKENING WELDING HELMET
TWECO AUTO-DARKENING WELDING HELMET
- Auto-darkening with variable shade from 9 to 13
- Large viewing screen
- Welding & grinding modes
- Lightweight & adjustable for complete comfort
- Conforms to ANSI Z87.1, CE EN379 & CE EN175
