Oil gauge tape measure

Lufkin Measuring Tapes

Bright Weld Middle East FZE is the top company that is known forsupplying the industries best oil gauging tape from Lufkin in UAE. So, no matter what your requirement is, you are free to check out the different available products and even study the specifications. This is the finest way of finding the right lufkin measuring tapes which will serve the finest need for you.

Bright Weld Lufkin Measuring Tapes

Crescent Lufkin® provides a variety of gauging tapes for a variety of measurement needs. Crescent Lufkin gauging tapes have endured the test of time thanks to their dependable construction and ease of use.

Oil gauging tape measures are a must-have for anybody who wants to gauge the level of oil in storage tanks or other containers.

HOW TO USE OIL GAUGING TAPE

The distance between the surface of a liquid in a tank and the top of the tank is measured using an outage tape. To put it another way, the section of the tank that isn't filled with liquid.Because determining where the liquid's top begins might be challenging, the graded plumb bob is progressively lowered from the reference point until it reaches the liquid.The bob's graduations begin where the bob is fastened to the tape and progress upward.The overall empty fraction of the tank is calculated by adding the reading on the bob – as revealed by the liquid – to the reading on the tape.

We are Bright Weld supplies the best oil gauging tape & measuring tapes in UAE, mainly Lufkin as a premier measuring tool for our clients. Lufkin Tapes ensures precision and accuracy in every project. We supplies all available Lufkin Measuring Tapes with high quality blades and markings. They are convenient to use, available in different measuring units.

Lufkin Measuring Tape Features:

Lufkin Measuring products are highly anti-corrosive and made of stainless steel blades
Consists of heavy duty frame for long lasting use
All frames have grounding straps

Oil Gauge Tape Measure

Hand-held gauging tapes are used to manually measure the liquid levels in storage tanks. Oil Gauge Measure Tapes are mainly used to understand the depth of tanks or containers. Bright Weld manufactures and supplies various types of chrome nickel plated, double coated Oil gauging tapes in Dubai.

Features:

Oil Gauge tapes are anti-corrosive
Double coated with different lacquers
Options in Blade style varieties
Outage and innage measuring methods
Explosion proof Material
Suitable for measuring the liquid height of petroleum and other liquid products in various containers

We offer Lufkin Power tapes, engineering and surveying tapes, speciality tapes and measuring wheels in UAE comprise one of the widest selections of measuring products available from any manufacturer.

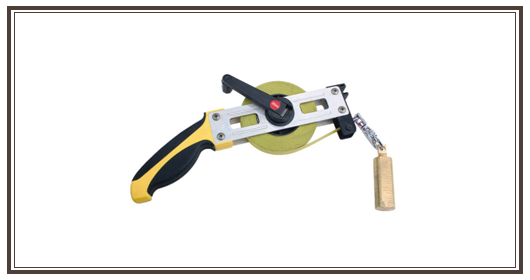

Oil Gauging Long Tapes

Oil Gauging Long Tapes

Atlas® Chrome Clad®

  • C1291sf590 – 45415 1/2″x33′ Replacement Blade F/ C1291s Atla
  • C1293sf590 – 45425 1/2″x50′ Atlas Chrome Clad Oil Gaging

Atlas® Chrome Clad® / Nubian® Double Duty

  • CN1290SF590 – Atlas Chrome Clad /Nubian Double Duty Tape, 1/2″ x 25′ Long
  • CN1293SF590 – Atlas Chrome Clad/Nubian Double Duty Tape, 1/2″ x 15mtrs(50′) Long

Atlas® Stainless Steel

  • S1291F590 – 1/2″ x 33′ Oil Gauging Atlas® Stainless Steel Tape

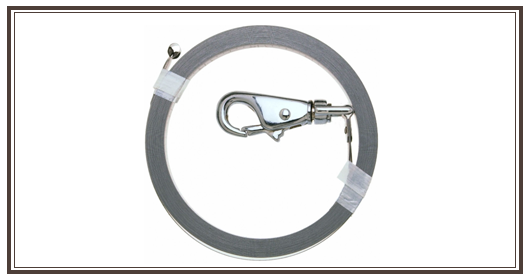

Replacement Blades

Standard Features 2,500 lb (1,135 kg) capacity

  • OCN1290SF590 1/2 x 25 Atlas® Chrome Clad®/Nubian® Double Duty Tape Refill for \ CN1290SF590
  • OCN1293SMEF590 – 1/2 (W) x 15mtrs/50 (L), Atlas® Chrome Clad®
  • Tape Refill for CN1293SMEF590
  • OC1291SF590 – 1/2 x 33 Atlas® Chrome Clad® Tape Refill for C1291SF590
  • OC1293SF590 – 1/2 x 50 Atlas® Chrome Clad® Tape Refill for C1293SF590
  • OS1291F590 – 1/2 x 33 Atlas® Stainless Steel Tape Refill S1291F590

Replacement Blades

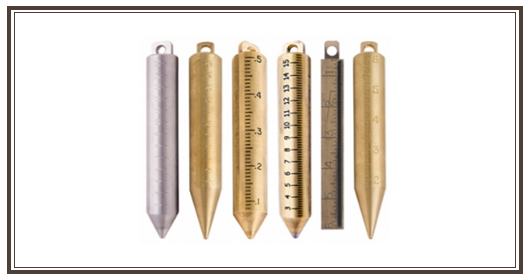

Inage Oil Gauging Plumb Bobs

Inage Oil Gauging Plumb Bobs

  • 590 – 20oz. solid brass inage Plumb bob cylindrical shape, 1″ x 6 3/4″
  • 590G – 20oz. solid brass bob; graduated in inches to 1/8ths, reading upward; blunt point
  • 590GM – 20oz. solid brass bob; graduated millimeters with centimeters numbered
  • 590GME – 20oz. solid brass bob; graduated in inches to 1/8ths, reading upward
  • S590 – 20oz. cylindrical shape stainless steel bob, 1″ x 6 3/4″

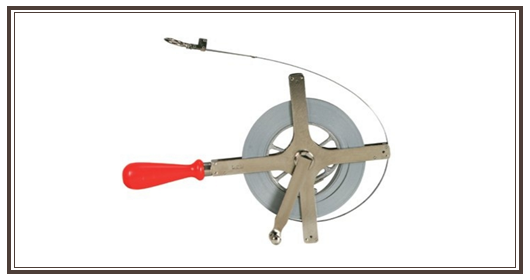

Surveying Tapes

  • C1278D – Engineer-Foot Peerless Tape, Chrome Clad Steel Frame, 1/4″ x 200′ Long,
  • C1288 – Chrome Clad Tape, 3/8″ x 200ft Long,
  • C2276D – Derrick Chrome Clad Tape, 1/4″ x 30 mtrs
  • C2276ME – Derrick Chrome Clad Tape, 1/4″ x 30 mtrs
  • CD2730DMM – Derrick Chrome Clad Tape, Decimal/Metric, 30mtrs Long

Surveying Tapes

Replacement Blade

Replacement Blade

  • OC1278D – Replacement Tape 1/4″ x 200′ Long for Peerless Chrome Clad (C1278D)
  • OC2276D – Replacement Tape, 1/4″ (W) x 100ft (L) in 10th Inches for C2276D Derrick Tape, Wt: 1.5lbs
  • OC2276ME – Replacement Blade 1/4″ (W) x 100ft (L) in 1/8 Inches & mm for C2276ME Derrick Tape
  • OCD2730DMM – Engineers Derrick Chrome Clad Tape Refill, 6mm x 30mtrs Long for CD2730DMM

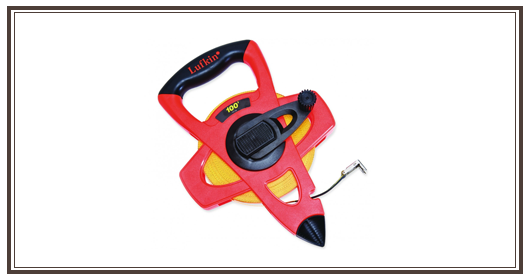

Lufkin

  • FM030CME – Fiberglass Tape, 1/2″ x 100’/30mtrs Long, Hi-Viz Orange
  • PHV1023CME – Tape Measure, 1/2″ x 10’/3mtrs Long , Hi-Viz Orange
  • PHV1035CME – Tape Measure, 3/4″ x 16’/5mtrs Long , Hi-Viz Orange
  • PHV1312D – Tape 3/4″ x 12′ Engineers Hi-VIZ Orange
  • P2312D – TAPE 3/4″X12′ ENGINEERS SERIES P2000

Lufkin

Lufkin

Lufkin

  • W606PD – Tape Rule, Executive Thinline, 1/4″ x 6ft Long, w/ A19 Style
    Blade, Yellow Clad, Polished Chrome Case
  • Y613ME – Tape Measure, 1/4″ x 10’/3mtrs PEE WEE
    W616 – 1/4″ x 6′ Pee Wee® Pocket Tape, Black Case
  • W9312D – Engineering Measurement Tape, Mezurall Series W,
    Size: (W) 3/4″ x 12ft Long in Inches & Ft (10th & 10th) A4 Style Yellow Blad
