DryRod® II Portable Electrode Ovens (All operate on 50-60Hz)

DryRod® II Portable Electrode Ovens (All operate on 50-60Hz)

TYPE 1

  • Dual voltage heating element operates between
  • 100–240V while providing consistent oven temperature
  • Removable cord secured to oven by locking power
  • inlet allows for easy replacement if damaged
  • Insulated lid easily secures with a latch
  • 5 kg (10 lb)
  • 150°C (300°F)
  • 100-240V AC/DC
  • 60 watts
  • Indicator light

DryRod® II Portable Electrode Ovens (All operate on 50-60Hz)

TYPE 2

  • Dual voltage heating element operates between
  • 100–240V while providing consistent oven temperature
  • Steady state operation reduces power consumption
  • External adjustable thermostat included
  • Power indicator light included
  • Removable cord secured to oven by locking power
  • inlet allows for easy replacement if damaged
  • 9 kg (20 lb)
  • Up to 150°C (300°F)
  • 100-240V AC/DC
  • 70 watts
  • Optional digital
  • Thermometer

DryRod® II Portable Electrode Ovens(All operate on 50-60Hz)

DryRod® II Portable Electrode Ovens(All operate on 50-60Hz)

DryRod® II Portable Electrode Ovens(All operate on 50-60Hz)

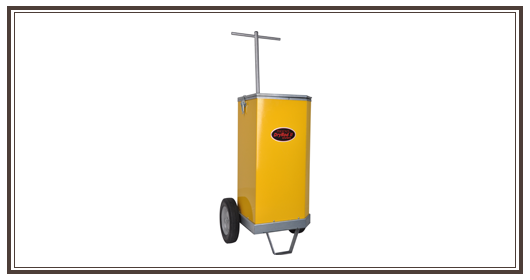

TYPE 5

  • Wire wrapped heating elements provide consistent oven temperature
  • Removable cord secured to oven by locking power inlet allows for easy replacement if damaged
  • Carry handles or wheels and pull handle available
  • External adjustable thermostat included
  • 25 kg (50 lb)
  • Up to 150°C (300°F)
  • 120/240V AC
  • 300 watts
  • Optional wheels and pull handle

DryRod® II Portable Electrode Ovens(All operate on 50-60Hz)

TYPE 15

  • 150 lb (70 kg) storage capacity for 14 in or 18 in electrodes
  • Adjustable thermostat provides temperature control in the field
  • 10 ft cord locks into the oven base to create a fixed connection
  • Body and lid insulation minimizes heat loss and energy usage
  • Safety Yellow color increase field visibility
  • Spring latch tightly secures insulated lid for transport
  • PN 1205532, PN 1205530 (with thermometer)
  • 70 kg (150 lb)
  • Up to 150°C (300°F
  • 120/240V AC
  • 600 watts
  • Bench model available

DryRod® II Portable Electrode Ovens(All operate on 50-60Hz)

Stationary Electrode Ovens (All operate on 50-60Hz)

TYPE 15

  • 150 lb (70 kg) storage capacity for 14 in or 18 in electrodes
  • Adjustable thermostat provides temperature control in the field
  • 10 ft cord locks into the oven base to create a fixed connection
  • Body and lid insulation minimizes heat loss and energy usage
  • Safety Yellow color increase field visibility
  • Spring latch tightly secures insulated lid for transport
  • PN 1205532, PN 1205530 (with thermometer)
  • 70 kg (150 lb)
  • Up to 150°C (300°F
  • 120/240V AC
  • 600 watts
  • Bench model available

TYPE 200HT

  • 90 kg (200 lb)
  • Up to 350°C (550°F)
  • 120/240V
  • 1000 watts
  • Door mounted thermometer

TYPE 900HT

  • 500 kg (1100 lb)
  • Up to 350°C (660°F)
  • 240V
  • 4000 watts
  • Optional thermometer

TYPE 300HT

  • 182 kg (400 lb)
  • Up to 350°C (660°F)
  • 120/240V
  • 1500 watts
  • Optional thermometer and
  • stacking option

TYPE 40HT

  • Variable high temperature allows for rebaking and reconditioning of electrodes
  • Programmable controller with digital temperature display allows for customized temperature profiles
  • Rugged steel construction provides durability in the field
  • 182 kg (400 lb)
  • Up to 427°C (800°F)
  • 240 or 480V
  • 4500 watts
  • Rebakes electrodes

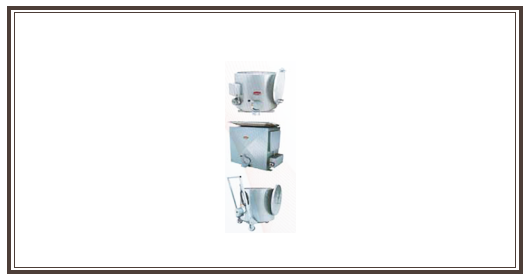

FLUX HOLDING AND REBAKING OVENS

  • Holds bulk granulated flux
  • Top loading makes for easy
    handling
  • Type 100FX has wheels for
    easy movement
  • Type 950FX has dispensing
    gate valve
  • Type 750HT reaches a higher
    temperature for rebaking

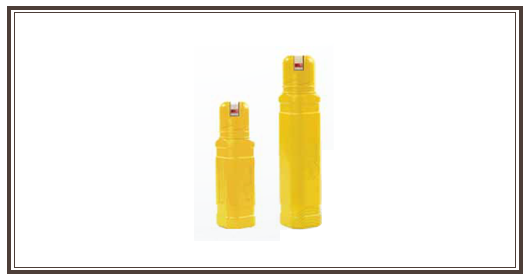

  • Short-term portable storage of
    electrodes and TIG rods
  • Cap is removed with only a ¼ turn
  • O-ring maintains watertight seal
